Using Speed Code

Speed Code feature will help inserting most repeatable code of the program (start program, change tool, ... )

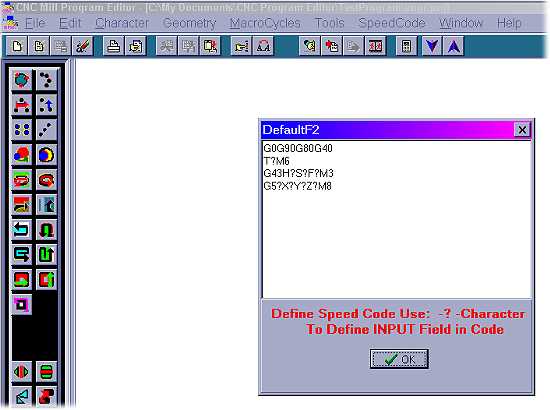

There are 6 (F2-F7) speed codes to use for each machine defined in the system. To write code to Speed code select Speed_Code->Define/Modify->Function Key from Editor menu (if code for function key was previously defined the speed key on menu will have check mark next to key name) this will open Input window

In title bar are shown Machine name and Function Key from keyboard used as shortcut to insert speed code into program.

Type desire blocks of program You wish to be quickly entered to the program. If You need to enter some values later type '?' instead.

Click OK.

To enter Speed Code into program press shortcut function key on keyboard or item from Editor Speed_Code->Insert Menu.

The associated program blocks will be inserted into Your program at current cursor position.

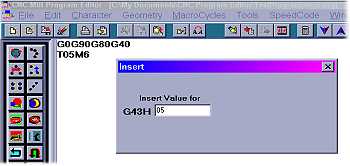

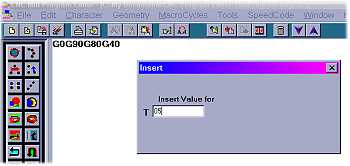

Input field will be opened at any time '?' character is found in speed code. The field is located in line at '?' position.

Enter required value, remember to include dot '.' where is needed . Input field is text a field and will be entered to the program without any evaluation.

The final result is shown on last screen shot.
