To get correct coordinate values for Chamfer and Radius between lines - definition of line must specify direction of line incoming to intersection point.

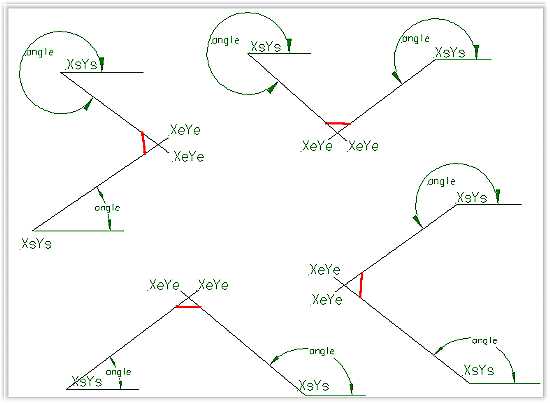

To do so remember to give correct line angle if line is define by Point and Angle. Correct angles are shown on drawing. Red short line marking chamfer or radius position which coordinate values will be calculated.
When definition of line is by two points Xs and Ys start points should be inserted into fields away of intersection
To check if order of points are correct check calculated angles of lines and change order if necessary.
